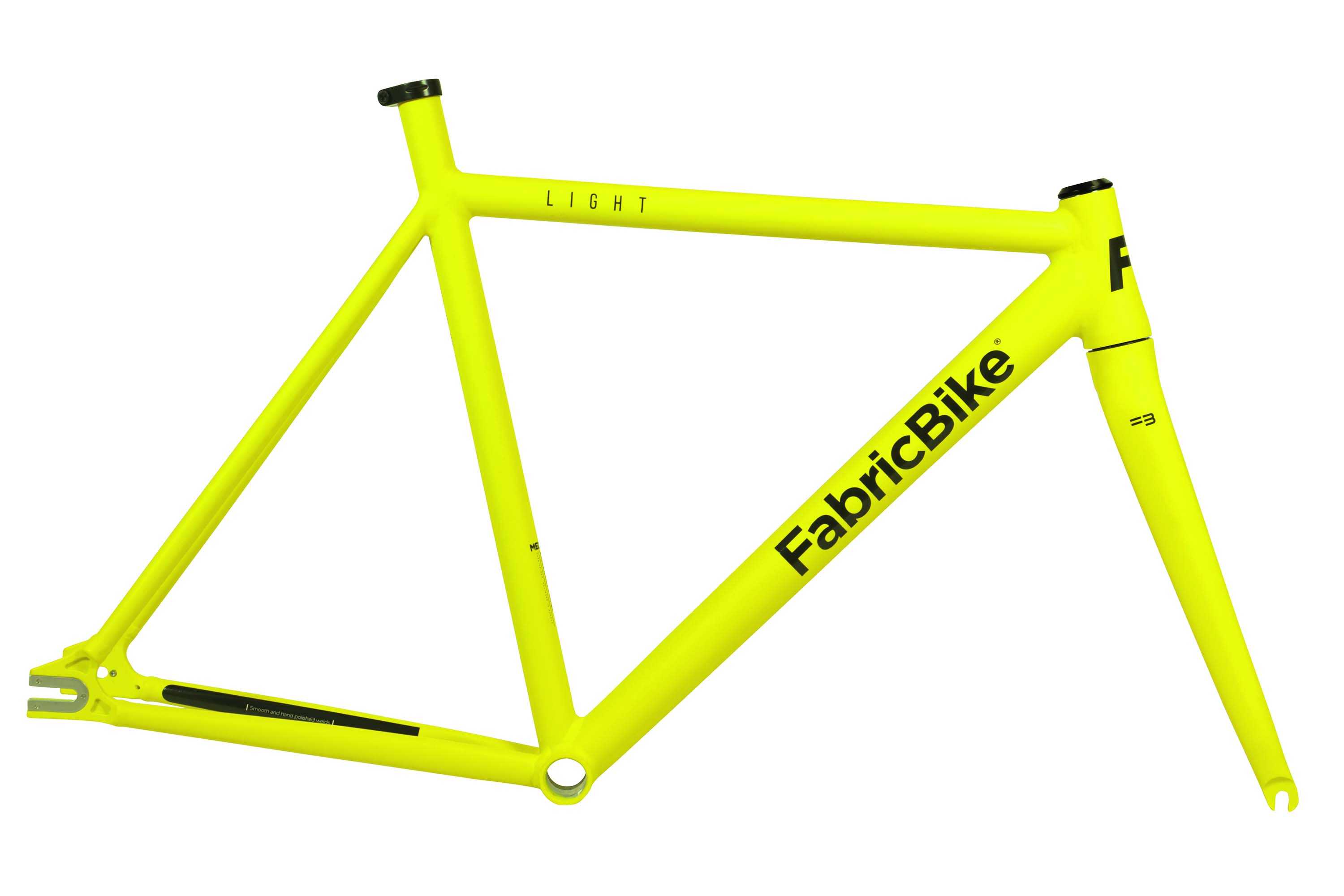

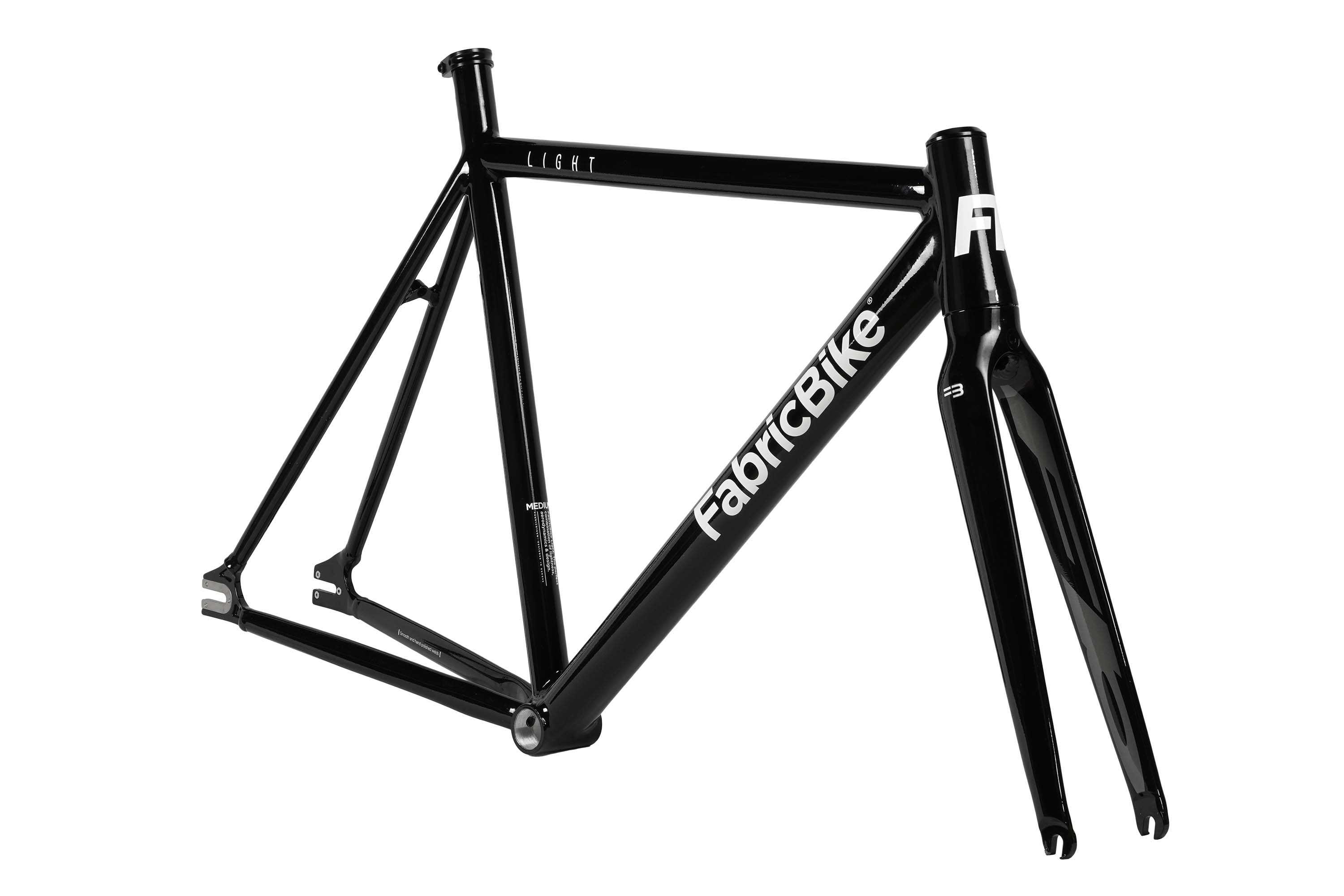

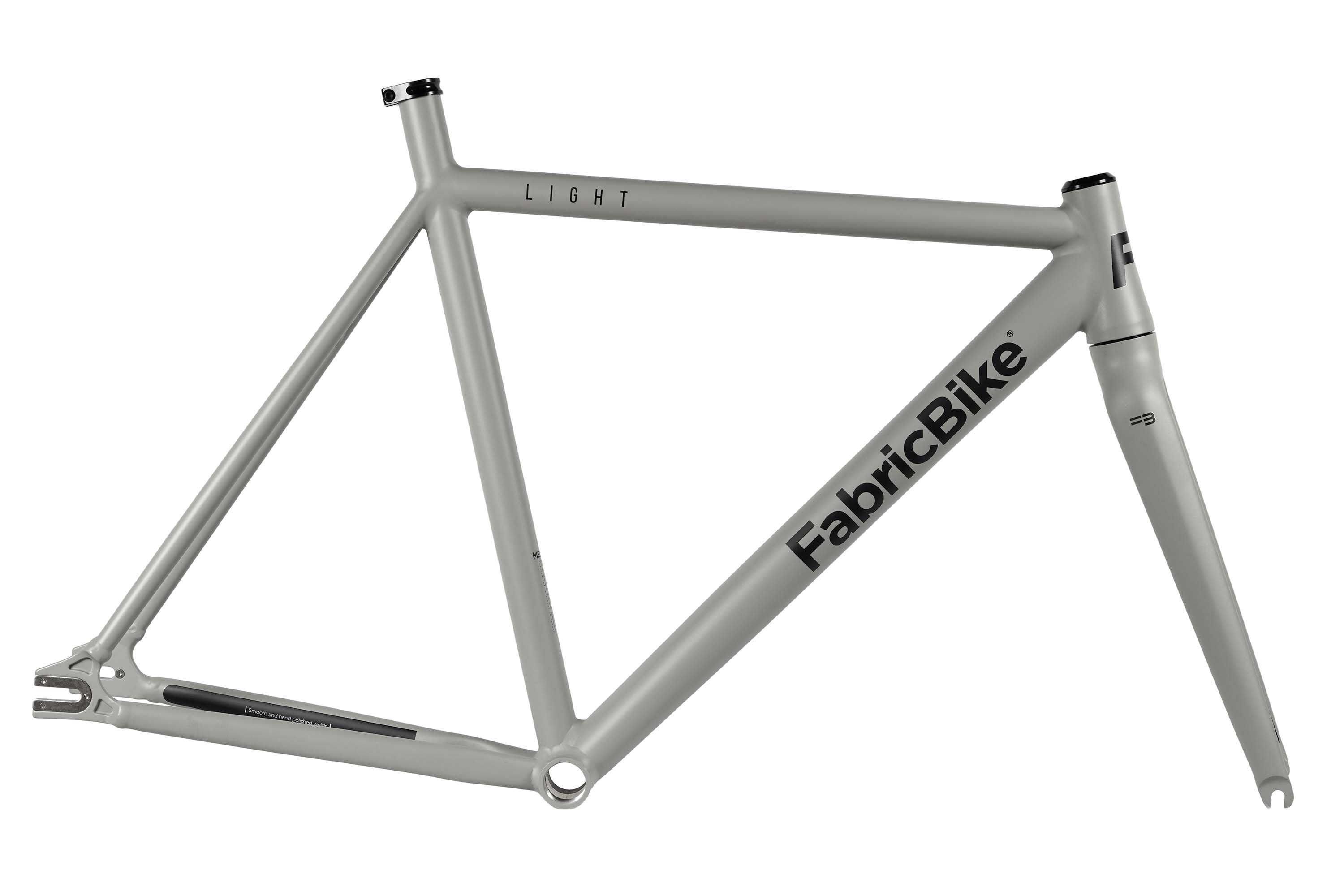

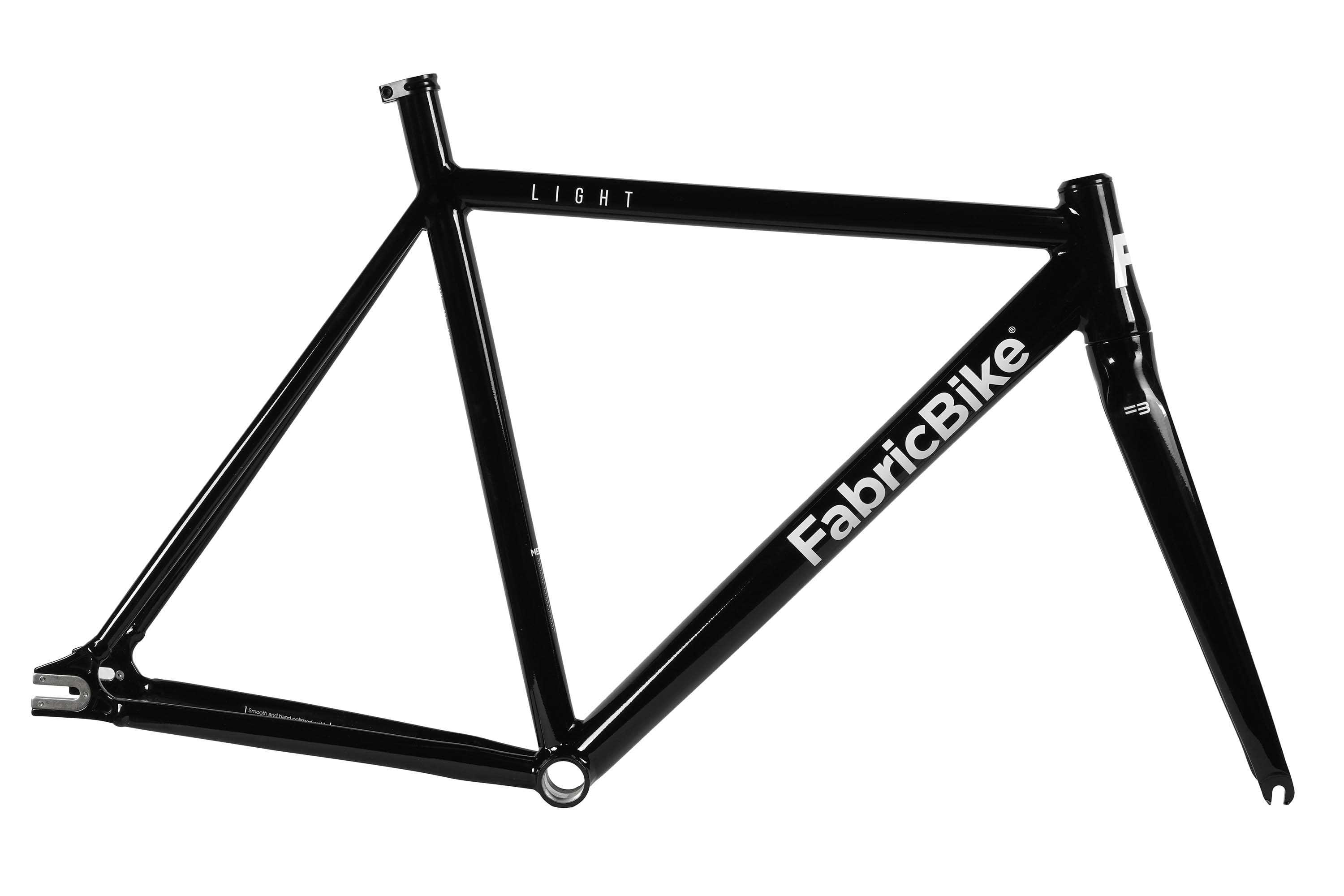

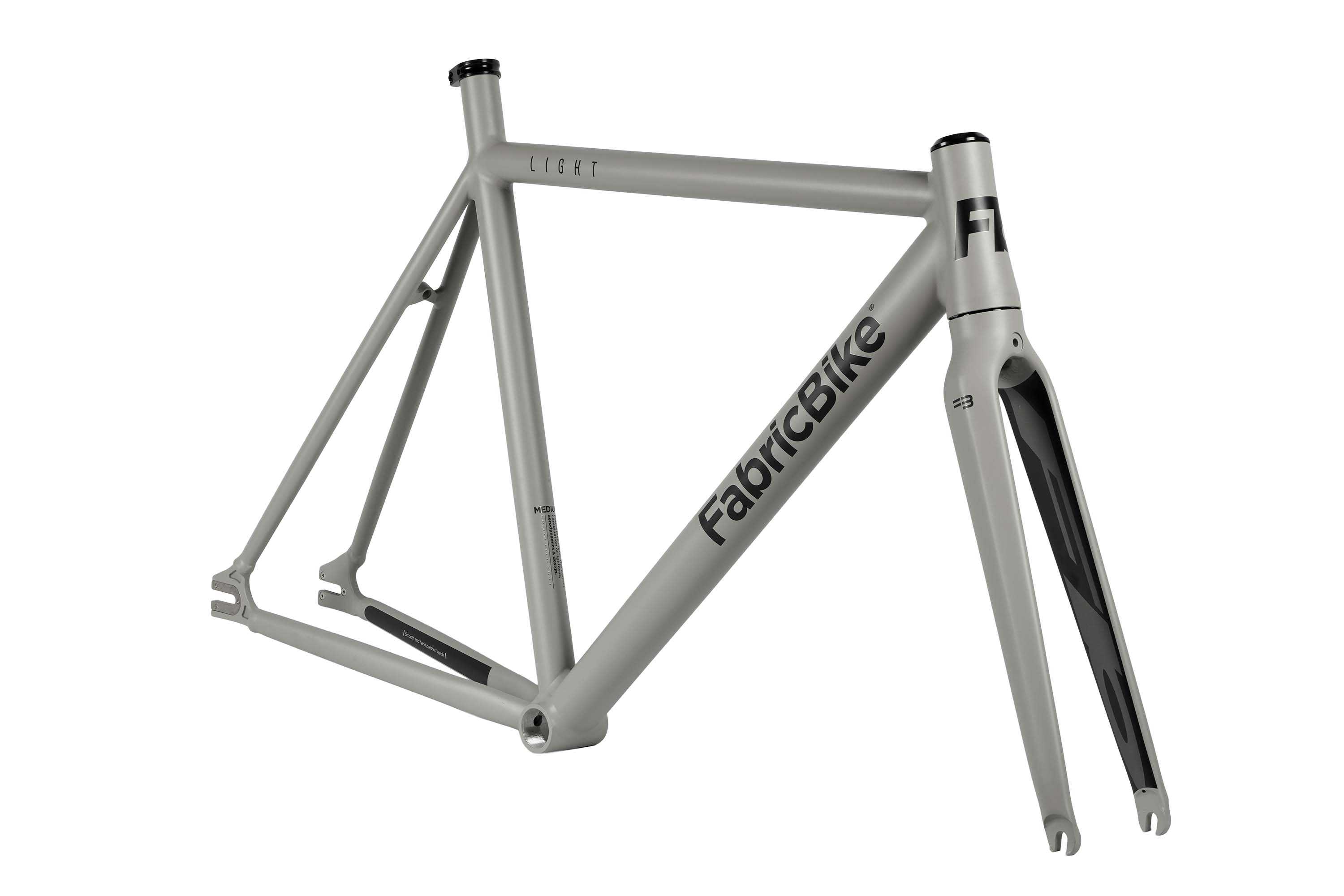

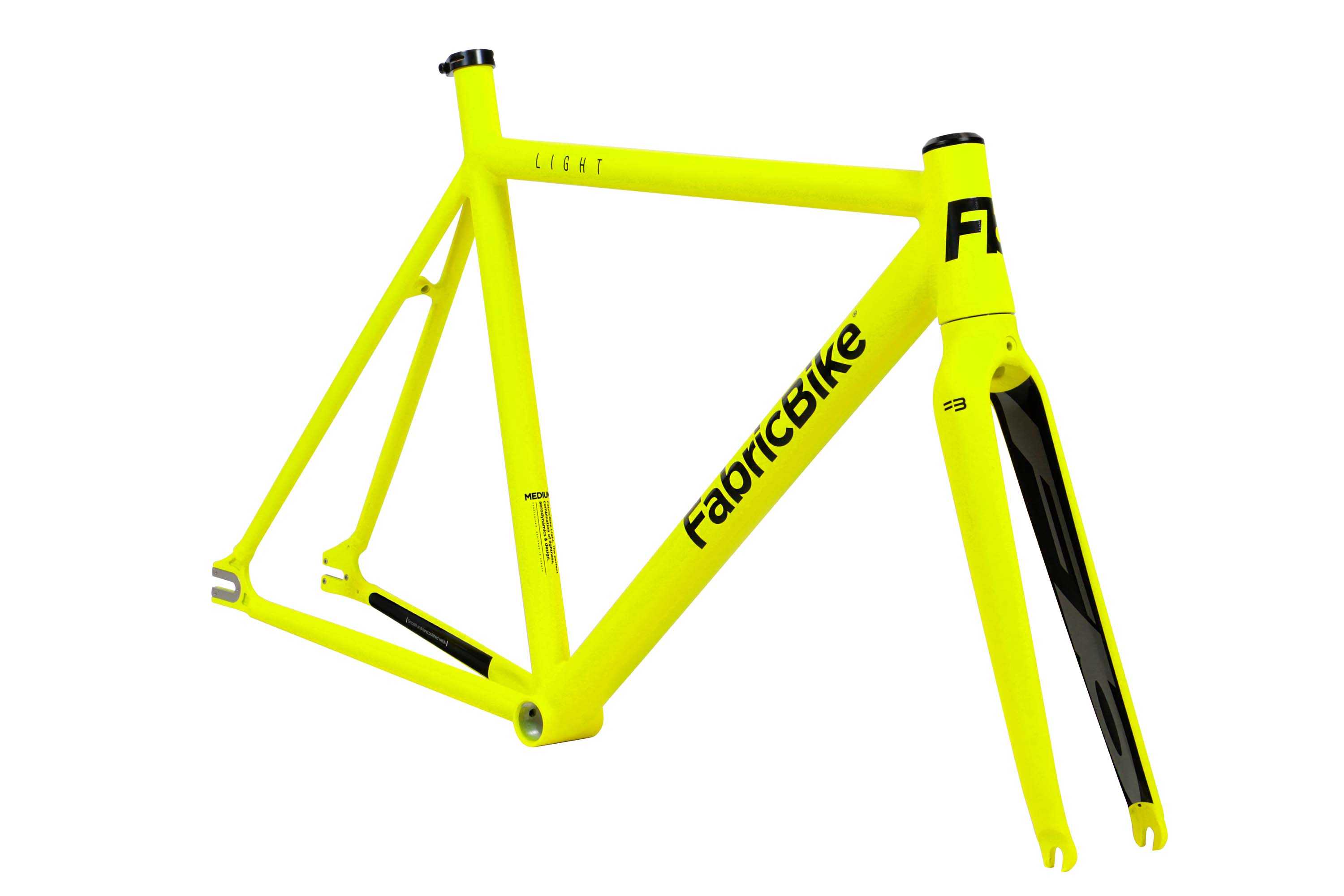

FabricBike Light FrameSet

349,99 €
FEATURES:
  • · Light Weight: 2,45kg. (Size M)

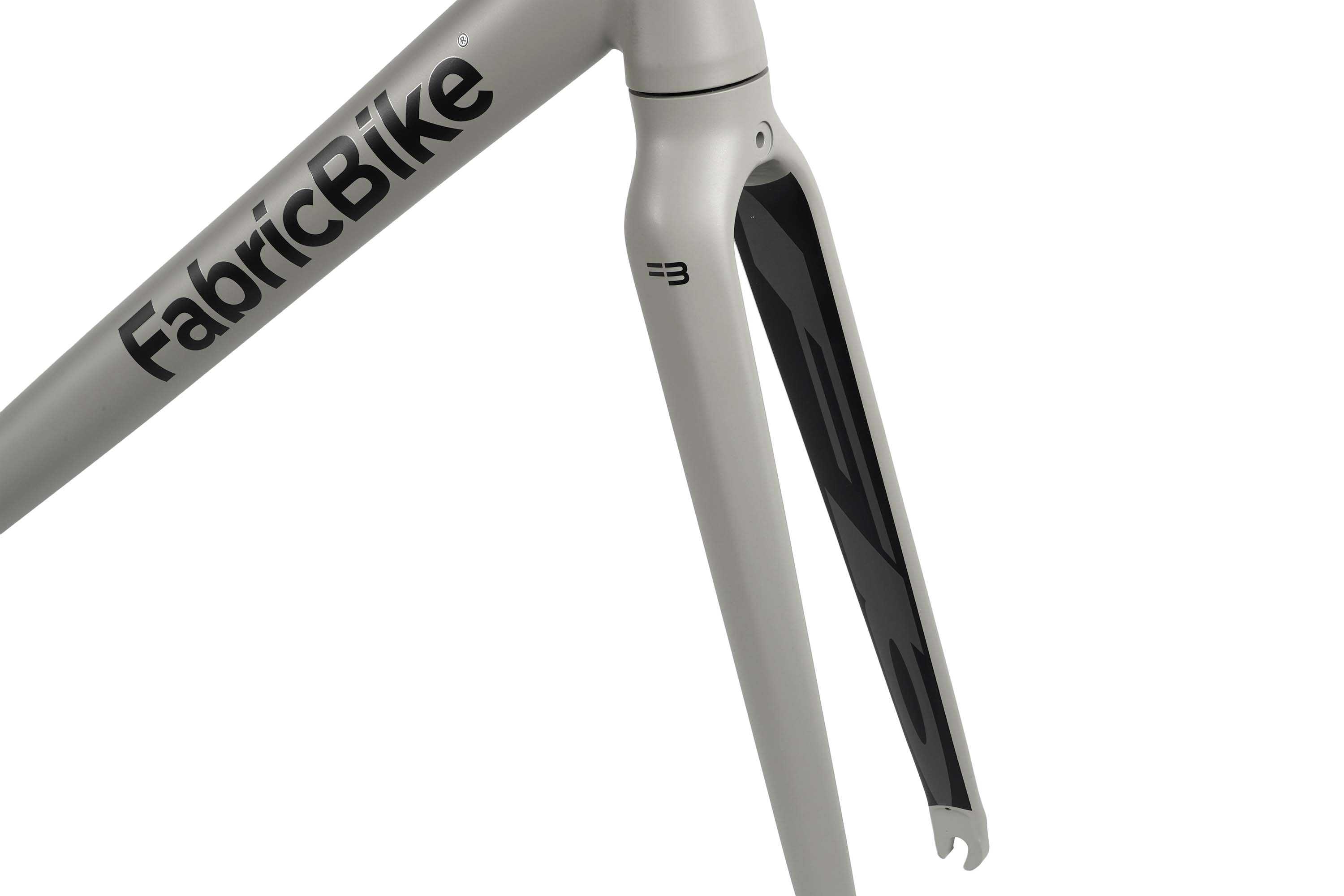

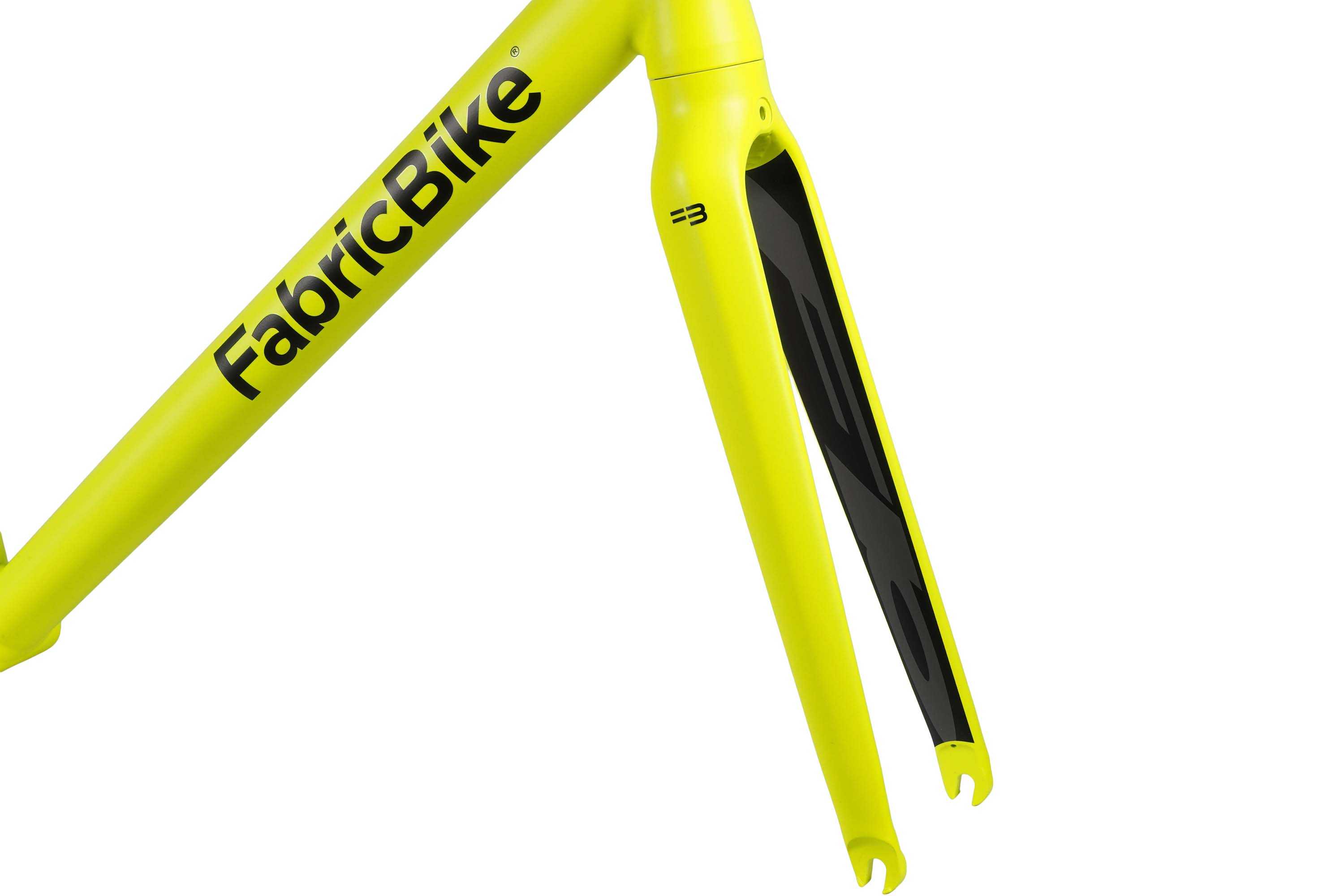

  • · Frameset, Headset, Fork and 31.6mm seatpost clamp.
  • · Double-butted aerodynamic 6061 aluminum tubing.

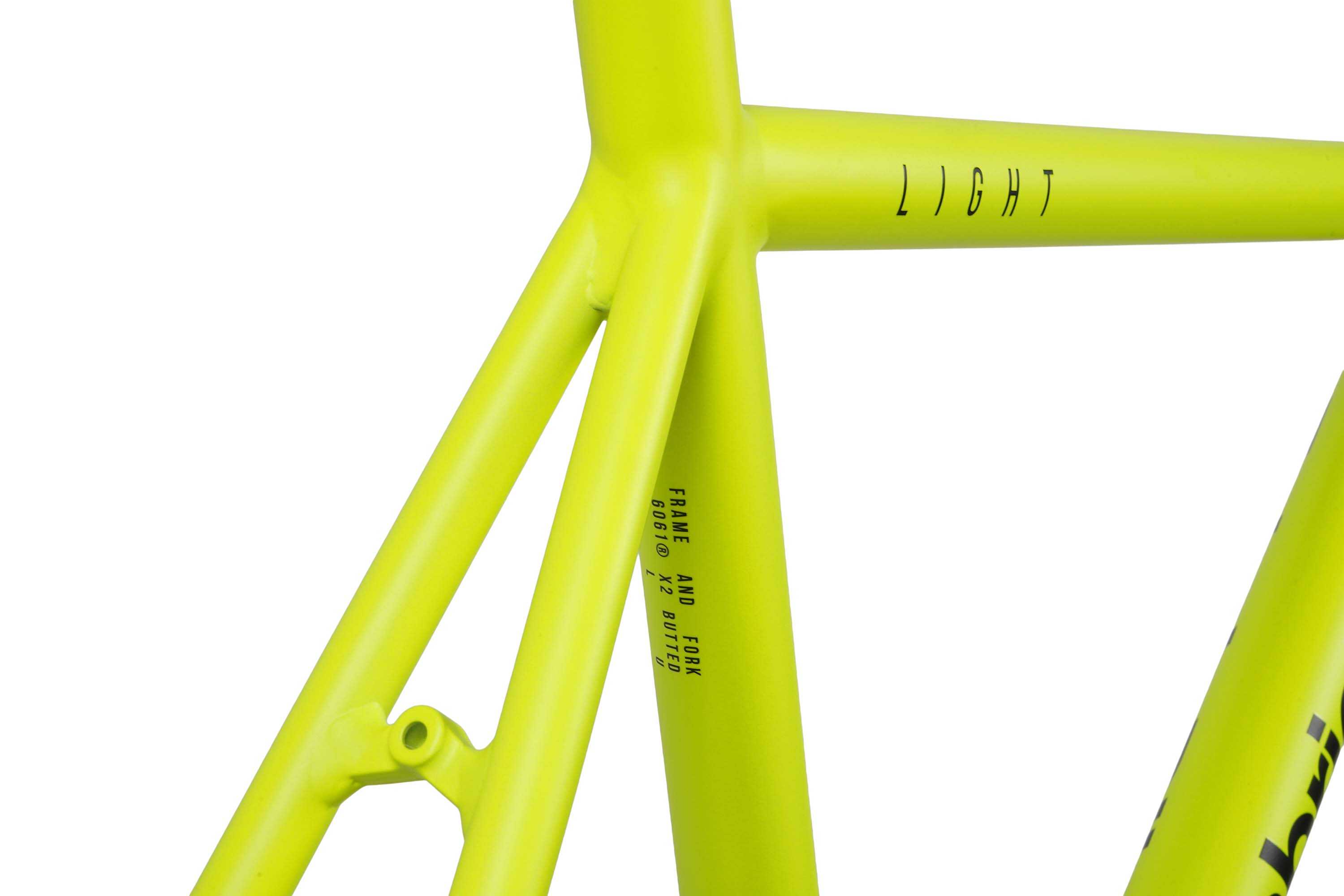

  • · Hydroformed top and seat tube.
  • · Hand polished smooth welds.
  • · Integrated conical headset (Top 1-1 / 8 '' - Low 1.5 '') included.
  • · Stainless steel dropouts.

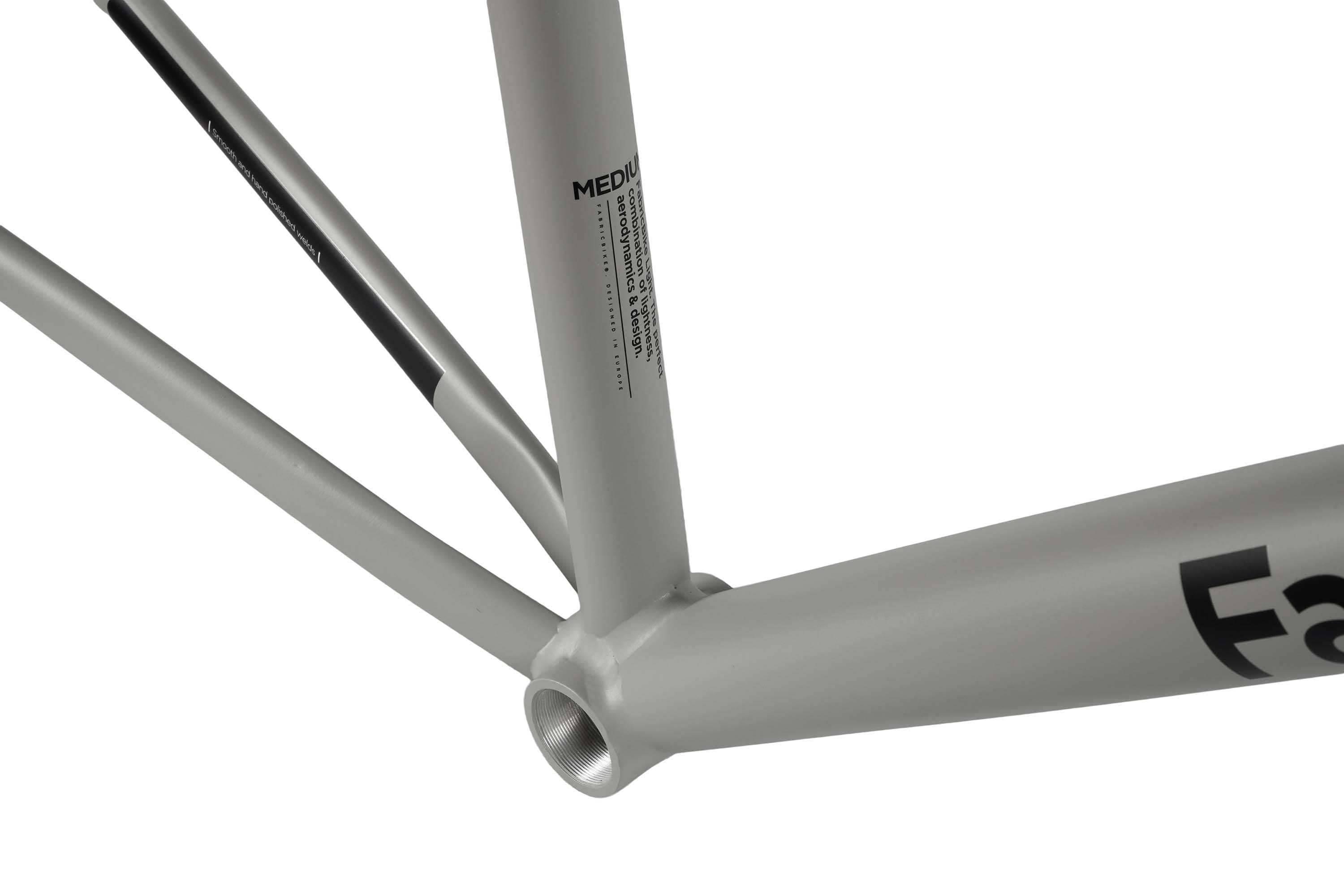

  • · 68mm bottom bracket, English thread.
Gilles D 2024-02-25

Beautiful frame; a bit too small

Beautiful frame, well made and finished.
The geometry is a bit small : i am 1.79m tall so i took a frame in size M (from indications that it fits sizes up to 1.83m), but it is definitely too small, especially the head tube is too short hence the handlebar too low and too close to the saddle. A stem of 100-120mm is required to somehow compensate.
There is plenty of room for large tires, no hassle there.

Xavi Colet 2019-08-08

Buena elección!

Dentro de los cuadros de bicicleta fixie es de lo mejorcito que he probado. Se nota mucho que es más ligero que una de acero. Las soldaduras y el acabdo mate estan bien hechos. Buena compra!

  • 1 out of 1 people found this review useful.
Pedro 2018-05-18

Gran cuadro a gran precio

Una maravilla de cuadro. Super ligero y muy bien acabado. Good job.

Write your review !

Write a review

FabricBike Light FrameSet

FabricBike Light FrameSet

FEATURES:
  • · Light Weight: 2,45kg. (Size M)
  • · Frameset, Headset, Fork and 31.6mm seatpost clamp.
  • · Double-butted aerodynamic 6061 aluminum tubing.
  • · Hydroformed top and seat tube.
  • · Hand polished smooth welds.
  • · Integrated conical headset (Top 1-1 / 8 '' - Low 1.5 '') included.
  • · Stainless steel dropouts.
  • · 68mm bottom bracket, English thread.

SIZES

Choose your FabricBike Light size:

S

50 cm

Riders up to 1.65m

M

54 cm

Riders from 1.66m up to 1.83m

L

58 cm

Riders from 1.84m





MEASURES

Medias

SIZINGSML
a Seat tube length (mm) 500mm 540mm 580mm
b Top tube length (mm) 513mm 541mm 571mm
c Head tube length (mm) 100mm 125mm 165mm
d Down tube length (mm) 597mm 612mm 631mm
e Chainstay (mm) 408mm 408mm 408mm
f Seat angle 76º 74º 74º
g Head tube angle 72,5º 73,5º 73,5º



a Seat tube length (mm)

S500mm
M540mm
L580mm

b Top tube length (mm)

S513mm
M541mm
L571mm

c Head tube length (mm)

S100mm
M125mm
L165mm

d Down tube length (mm)

S597mm
M612mm
L631mm

e Chainstay (mm)

S408mm
M408mm
L408mm

f Seat angle

S76º
M74º
L74º

g Head tube angle

S72,5º
M73,5º
L73,5º
